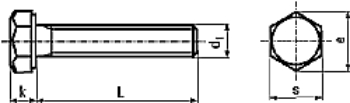

Dimensões
| d1 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | M24 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Passo | MA-0,50 | MA-0,70 | MA-0,80 | MA-1,00 | MA-1,25 | MA-1,50 | MA-1,75 | MA-2,00 | MA-2,00 | MA-2,50 | MA-3,00 |
| k | 2,0 | 2,8 | 3,5 | 4,0 | 5,3 | 6,4 | 7,5 | 8,8 | 10,0 | 12,5 | 15,0 |
| S | 5,5 | 7,0 | 8,0 | 10,0 | 13,0 | 17,0 | 19,0 | 22,0 | 24,0 | 30,0 | 36,0 |
Arraste a tabela para o lado para ver todas as medidas.
| Código | Descrição |
|---|---|
| 2SXN10X3/8 | PARAF SX ANSI B18. 2. 1 #10 - 24 X 3/8 304 (A2) |
| 2SXN10X1/2 | PARAF SX ANSI B18. 2. 1 #10 - 24 X 1/2 304 (A2) |
| 2SXN10X5/8 | PARAF SX ANSI B18. 2. 1 #10 - 24 X 5/8 304 (A2) |
| 2SXN10X3/4 | PARAF SX ANSI B18. 2. 1 #10 - 24 X 3/4 304 (A2) |
| 2SXN10X7/8 | PARAF SX ANSI B18. 2. 1 #10 - 24 X 7/8 304 (A2) |
| 2SXN10X1 | PARAF SX ANSI B18. 2. 1 #10 - 24 X 1 304 (A2) |
| 2SXN10X1-1/4 | PARAF SX ANSI B18. 2. 1 #10 - 24 X 1-1/4 304 (A2) |
| 2SXN10X1-1/2 | PARAF SX ANSI B18. 2. 1 #10 - 24 X 1-1/2 304 (A2) |
| 2SXN10X2 | PARAF SX ANSI B18. 2. 1 #10 - 24 X 2 304 (A2) |
| 2SXN10X2-1/2 | PARAF SX ANSI B18. 2. 1 #10 - 24 X 2-1/2 304 (A2) |
| 2SXN10X3 | PARAF SX ANSI B18. 2. 1 #10 - 24 X 3 304 (A2) |
| 2SX1/4X3/8 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 3/8 304 (A2) |
| 2SX1/4X1/2 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 1/2 304 (A2) |
| 2SX1/4X5/8 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 5/8 304 (A2) |
| 2SX1/4X3/4 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 3/4 304 (A2) |
| 2SX1/4X7/8 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 7/8 304 (A2) |
| 2SX1/4X1 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X1 304 (A2) |
| 2SX1/4X1-1/4 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 1-1/4 304 (A2) |
| 2SX1/4X1-1/2 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 1-1/2 304 (A2) |
| 2SX1/4X1-3/4 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 1-3/4 304 (A2) |
| 2SX1/4X2 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 2 304 (A2) |
| 2SX1/4X2-1/4 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 2-1/4 304 (A2) |
| 2SX1/4X2-1/2 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 2-1/2 304 (A2) |
| 2SX1/4X2-3/4 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 2-3/4 304 (A2) |
| 2SX1/4X3 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 3 304 (A2) |
| 2SX1/4X3-1/2 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 3 1/2 304 (A2) |
| 2SX1/4X4 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 4 304 (A2) |
| 2SX1/4X4-1/2 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 4-1/2 304 (A2) |
| 2SX1/4X5 | PARAF SX ANSI B18. 2. 1 1/4 - 20 X 5 304 (A2) |
| 2SX5/16X1/2 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 1/2 304 (A2) |
| 2SX5/16X5/8 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 5/8 304 (A2) |
| 2SX5/16X3/4 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 3/4 304 (A2) |
| 2SX5/16X7/8 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 7/8 304 (A2) |
| 2SX5/16X1 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 1 304 (A2) |
| 2SX5/16X1-1/4 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 1-1/4 304 (A2) |
| 2SX5/16X1-1/2 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 1-1/2 304 (A2) |
| 2SX5/16X1-3/4 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 1-3/4 304 (A2) |
| 2SX5/16X2 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 2 304 (A2) |
| 2SX5/16X2-1/4 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 2-1/4 304 (A2) |
| 2SX5/16X2-1/2 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 2-1/2 304 (A2) |
| 2SX5/16X2-3/4 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 2-3/4 304 (A2) |
| 2SX5/16X3 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 3 304 (A2) |
| 2SX5/16X3-1/2 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 3-1/2 304 (A2) |
| 2SX5/16X4 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 4 304 (A2) |
| 2SX5/16X4-1/2 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 4-1/2 304 (A2) |
| 2SX5/16X5 | PARAF SX ANSI B18. 2. 1 5/16 - 18 X 304 (A2) |
| 2SX3/8X1/2 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 1/2 304 (A2) |
| 2SX3/8X5/8 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 5/8 304 (A2) |
| 2SX3/8X3/4 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 3/4 304 (A2) |
| 2SX3/8X7/8 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 7/8 304 (A2) |
| 2SX3/8X1 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 1 304 (A2) |
| 2SX3/8X1-1/4 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 1-1/4 304 (A2) |
| 2SX3/8X1-1/2 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 1-1/2 304 (A2) |
| 2SX3/8X1-3/4 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 1-3/4 304 (A2) |
| 2SX3/8X2 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 2 304 (A2) |
| 2SX3/8X2-1/4 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 2-1/4 304 (A2) |
| 2SX3/8X2-1/2 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 2-1/2 304 (A2) |
| 2SX3/8X2-3/4 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 2-3/4 304 (A2) |
| 2SX3/8X3 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 3 304 (A2) |
| 2SX3/8X3-1/2 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 3-1/2 304 (A2) |
| 2SX3/8X4 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 4 304 (A2) |
| 2SX3/8X4-1/2 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 4-1/2 304 (A2) |
| 2SX3/8X5 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 5 304 (A2) |
| 2SX3/8X6 | PARAF SX ANSI B18. 2. 1 3/8 - 16 X 6 304 (A2) |
| 2SX7/16X1 | PARAF SX ANSI B18. 2. 1 7/16 - 14 X 1 304 (A2) |
| 2SX7/16X1-1/4 | PARAF SX ANSI B18. 2. 1 7/16 - 14 X 1-1/4 304 (A2) |
| 2SX7/16X1-1/2 | PARAF SX ANSI B18. 2. 1 7/16 - 14 X 1-1/2 304 (A2) |
| 2SX7/16X2 | PARAF SX ANSI B18. 2. 1 7/16 - 14 X 2 304 (A2) |
| 2SX7/16X2-1/2 | PARAF SX ANSI B18. 2. 1 7/16 - 14 X 2-1/2 304 (A2) |
| 2SX7/16X3 | PARAF SX ANSI B18. 2. 1 7/16 - 14 X 3 304 (A2) |
| 2SX1/2X3/4 | PARAF SX ANSI B18. 2. 1 1/2 - 13 X 3/4 304 (A2) |
| 2SX1/2X1 | PARAF SX ANSI B18. 2. 1 1/2 - 13 X 1 304 (A2) |
| 2SX1/2X1-1/4 | PARAF SX ANSI B18. 2. 1 1/2 - 13 X 1-1/4 304 (A2) |
| 2SX1/2X1-1/2 | PARAF SX ANSI B18. 2. 1 1/2 - 13 X 1-1/2 304 (A2) |
| 2SX1/2X1-3/4 | PARAF SX ANSI B18. 2. 1 1/2 - 13 X 1-3/4 304 (A2) |
| 2SX1/2X2 | PARAF SX ANSI B18. 2. 1 1/2 - 13 X 2 304 (A2) |
| 2SX1/2X2-1/4 | PARAF SX ANSI B18. 2. 1 1/2 - 13 X 2-1/4 304 (A2) |
| 2SX1/2X2-1/2 | PARAF SX ANSI B18. 2. 1 1/2 - 13 X 2-1/2 304 (A2) |
| 2SX1/2X3 | PARAF SX ANSI B18. 2. 1. 1/2 - 13 X 3 304 (A2) |
| 2SX1/2X3-1/2 | PARAF SX ANSI B18. 2. 1 1/2 - 13 X 3-1/2 304 (A2) |
| 2SX1/2X4 | PARAF SX ANSI B18. 2. 1. 1/2 - 13 X 4 304 (A2) |
| 2SX1/2X4-1/2 | PARAF SX ANSI B18. 2. 1 1/2 - 13 X 4-1/2 304 (A2) |
| 2SX1/2X5 | PARAF SX ANSI B18. 2. 1. 1/2 - 13 X 5 304 (A2) |
| 2SX1/2X6 | PARAF SX ANSI B18. 2. 1. 1/2 - 13 X 6 304 (A2) |
| 2SX1/2WX1 | PARAF SX ANSI B18. 2. 1 1/2 - 12WW X 1 304 (A2) |
| 2SX1/2WX1-1/4 | PARAF SX ANSI B18. 2. 1 1/2 - 12WW X 1-1/4 304 (A2) |
| 2SX1/2WX1-1/2 | PARAF SX ANSI B18. 2. 1 1/2 - 12WW X 1-1/2 304 (A2) |
| 2SX1/2WX1-3/4 | PARAF SX ANSI B18. 2. 1 1/2 - 12WW X 1-3/4 304 (A2) |
| 2SX1/2WX2 | PARAF SX ANSI B18. 2. 1 1/2 - 12WW X 2 304 (A2) |
| 2SX1/2WX2-1/4 | PARAF SX ANSI B18. 2. 1 1/2 - 12WWX 2-1/4 304 (A2) |
| 2SX1/2WX2-1/2 | PARAF SX ANSI B18. 2. 1 1/2 - 12WWX 2-1/2 304 (A2) |
| 2SX1/2WX3 | PARAF SX ANSI B18. 2. 1 1/2 - 12WW X 3 304 (A2) |
| 2SX1/2WX3-1/2 | PARAF SX ANSI B18. 2. 1 1/2 - 12WW X 3-1/2 304 (A2) |
| 2SX1/2WX4 | PARAF SX ANSI B18. 2. 1 1/2 - 12WWX 4 304 (A2) |
| 2SX5/8X1 | PARAF SX ANSI B18. 2. 1 5/8 - 11 X 1 304 (A2) |
| 2SX5/8X1-1/4 | PARAF SX ANSI B18. 2. 1 5/8 - 11 X 1-1/4 304 (A2) |
| 2SX5/8X1-1/2 | PARAF SX ANSI B18. 2. 1 5/8 - 11 X 1-1/2 304 (A2) |
| 2SX5/8X1-3/4 | PARAF SX ANSI B18. 2. 1 5/8 - 11 X 1-3/4 304 (A2) |
| 2SX5/8X2 | PARAF SX ANSI B18. 2. 1 5/8 - 11 X 2 304 (A2) |
| 2SX5/8X2-1/4 | PARAF SX ANSI B18. 2. 1 5/8 - 11 X 2-1/4 304 (A2) |
| 2SX5/8X2-1/2 | PARAF SX ANSI B18. 2. 1 5/8 - 11 X 2-1/2 304 (A2) |
| 2SX5/8X2-3/4 | PARAF SX ANSI B18. 2. 1 5/8 - 11 X 2-3/4 304 (A2) |
| 2SX5/8X3 | PARAF SX ANSI B18. 2. 1 5/8 - 11 X 3 304 (A2) |
| 2SX5/8X3-1/2 | PARAF SX ANSI B18. 2. 1 5/8 - 11 X 3-1/2 304 (A2) |
| 2SX5/8X4 | PARAF SX ANSI B18. 2. 1 5/8 - 11 X 4 304 (A2) |
| 2SX5/8X4-1/2 | PARAF SX ANSI B18. 2. 1 5/8 - 11 X 4-1/2 304 (A2) |
| 2SX5/8X5 | PARAF SX ANSI B18. 2. 1 5/8 - 11 X 5 304 (A2) |
| 2SX5/8X5-1/2 | PARAF SX ANSI B18. 2. 1 5/8 - 11 X 5-1/2 304 (A2) |
| 2SX5/8X6 | PARAF SX ANSI B18. 2. 1 5/8 - 11 X 6 304 (A2) |
| 2SX3/4X1-1/2 | PARAF SX ANSI B18. 2. 1 3/4 - 10 X 1-1/2 304 (A2) |
| 2SX3/4X2 | PARAF SX ANSI B18. 2. 1 3/4 - 10 X 2 304 (A2) |
| 2SX3/4X2-1/2 | PARAF SX ANSI B18. 2. 1 3/4 - 10 X 2-1/2 304 (A2) |
| 2SX3/4X3 | PARAF SX ANSI B18. 2. 1 3/4 - 10 X 3 304 (A2) |
| 2SX3/4X2-3/4 | PARAF SX ANSI B18. 2. 1 3/4 - 10 X 2-3/4 304 (A2) |
| 2SX3/4X3-1/2 | PARAF SX ANSI B18. 2. 1 3/4 - 10 X 3-1/2 304 (A2) |
| 2SX3/4X4 | PARAF SX ANSI B18. 2. 1 3/4 - 10 X 4 304 (A2) |
| 2SX3/4X4-1/2 | PARAF SX ANSI B18. 2. 1 3/4 - 10 X 4-1/2 304 (A2) |
| 2SX3/4X5 | PARAF SX ANSI B18. 2. 1 3/4 - 10 X 5 304 (A2) |
| 2SX3/4X5-1/2 | PARAF SX ANSI B18. 2. 1 3/4 - 10 X 5-1/2 304 (A2) |
| 2SX3/4X6 | PARAF SX ANSI B18. 2. 1 3/4 - 10 X 6 304 (A2) |
| 2SX7/8X2 | PARAF SX ANSI B18. 2. 1 7/8 - 9 X 2 304 (A2) |
| 2SX7/8X2-1/2 | PARAF SX ANSI B18. 2. 1 7/8 - 9 X 2-1/2 304 (A2) |
| 2SX7/8X3 | PARAF SX ANSI B18. 2. 1 7/8 - 9 X 3 304 (A2) |
| 2SX7/8X3-1/2 | PARAF SX ANSI B18. 2. 1 7/8 - 9 X 3-1/2 304 (A2) |
| 2SX7/8X4 | PARAF SX ANSI B18. 2. 1 7/8 - 9 X 4 304 (A2) |
| 2SX7/8X4-1/2 | PARAF SX ANSI B18. 2. 1 7/8 - 9 X 4-1/2 304 (A2) |
| 2SX7/8X5 | PARAF SX ANSI B18. 2. 1 7/8 - 9 X 5 304 (A2) |
| 2SX7/8X5-1/2 | PARAF SX ANSI B18. 2. 1 7/8 - 9 X 5-1/2 304 (A2) |
| 2SX7/8X6 | PARAF SX ANSI B18. 2. 1 7/8 - 9 X 6 304 (A2) |
| 2SX1X2 | PARAF SX ANSI B18. 2. 1 1 - 8 X 2 304 (A2) |
| 2SX1X2-1/2 | PARAF SX ANSI B18. 2. 1 1 - 8 X 2-1/2 304 (A2) |
| 2SX1X3 | PARAF SX ANSI B18. 2. 1 1 - 8 X 3 304 (A2) |
| 2SX1X3-1/2 | PARAF SX ANSI B18. 2. 1 1 - 8 X 3-1/2 304 (A2) |
| 2SX1X4 | PARAF SX ANSI B18. 2. 1 1 - 8 X 4 304 (A2) |
| 2SX1X4-1/2 | PARAF SX ANSI B18. 2. 1 1 - 8 X 4-1/2 304 (A2) |
| 2SX1X5 | PARAF SX ANSI B18. 2. 1 1 - 8 X 5 304 (A2) |
| 2SX1X5-1/2 | PARAF SX ANSI B18. 2. 1 1 - 8 X 5-1/2 304 (A2) |
| 2SX1X6 | PARAF SX ANSI B18. 2. 1 1 - 8 X 6 304 (A2) |
Parafuso sextavado inox, indicado para fixações em geral. Utilizado na fixação de componentes, como os suportes para painéis fotovoltaicos, nos perfis dos arranjos fotovoltaicos, em máquinas e equipamentos industriais, em estruturas metálicas, ou qualquer aplicação que seja necessária a união de peças desmontáveis.
Pode ser aplicado com uso de uma Porca Sextavada, quadrada ou outro modelo, ou ainda ser aplicado em um furo roscado na própria peça.
O parafuso sextavado pode ser usado tanto na área interna, quanto externa, pois ele é resistente às mudanças de tempo.
Contando com os diferenciais do parafuso rosca inteira, você terá acesso a uma infinidade de aplicações. Por ser feito em inox, ele é resistente à corrosão e oferece maior durabilidade.
Norma DIN 933 e ANSI B 18.2.1 (ASTM F593)
IPI: 6,5%
Consulte descontos e estoque
Preços sujeitos a alteração sem prévio aviso
Medidas orientativas e imagens meramente ilustrativas.
